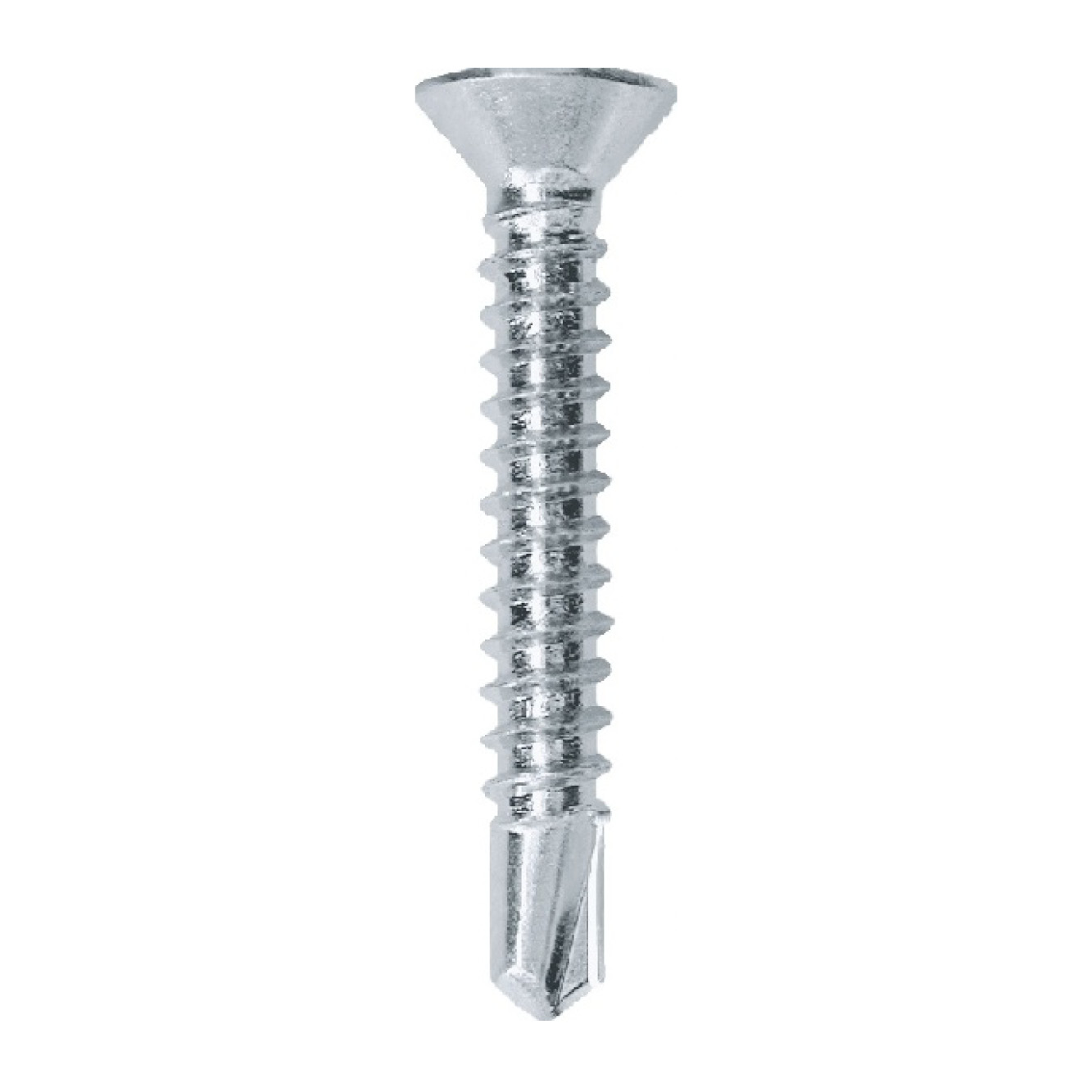

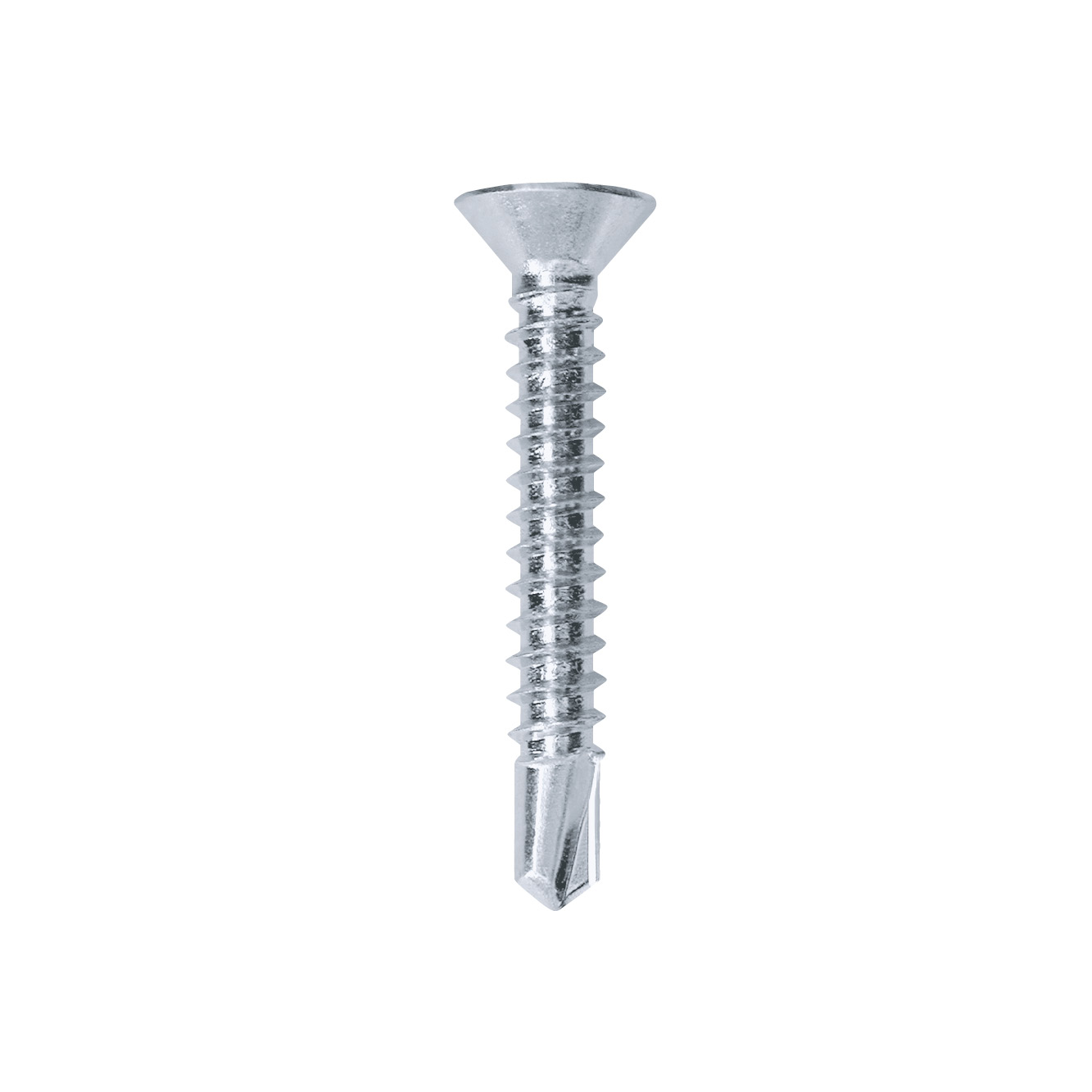

AP-STEEL TPS
Vite autoperforante - Zincato bianco
Testa: TPS
Impronta: Philips
Passo: DIN 7970
Dati tecnici
Dimensioni prodotto - Philips
| Codici | Informazioni di prodotto | |||||
|---|---|---|---|---|---|---|
| Riferimenti di prodotto | Vite [Ø x L] [mm] | Supp. metallici spessore [mm] | Impronta | Conf. | Imballo | |
| 39601B35009S0 | AP-STEEL TPS | 3,5x9,5 | 0,7-2,25 | PH2 | 500 | 16000 |
| 39601B35013S0 | AP-STEEL TPS | 3,5x13 | 0,7-2,25 | PH2 | 500 | 16000 |
| 39601B35016S0 | AP-STEEL TPS | 3,5x16 | 0,7-2,25 | PH2 | 500 | 16000 |
| 39601B35019S0 | AP-STEEL TPS | 3,5x19 | 0,7-2,25 | PH2 | 500 | 8000 |
| 39601B35022S0 | AP-STEEL TPS | 3,5x22 | 0,7-2,25 | PH2 | 500 | 8000 |
| 39601B35025S0 | AP-STEEL TPS | 3,5x25 | 0,7-2,25 | PH2 | 500 | 8000 |
| 39601B39013S0 | AP-STEEL TPS | 3,9x13 | 0,7-2,4 | PH2 | 500 | 16000 |
| 39601B39016S0 | AP-STEEL TPS | 3,9x16 | 0,7-2,4 | PH2 | 500 | 8000 |
| 39601B39019S0 | AP-STEEL TPS | 3,9x19 | 0,7-2,4 | PH2 | 500 | 8000 |
| 39601B39022S0 | AP-STEEL TPS | 3,9x22 | 0,7-2,4 | PH2 | 500 | 8000 |
| 39601B39025S0 | AP-STEEL TPS | 3,9x25 | 0,7-2,4 | PH2 | 500 | 8000 |
| 39601B39032S0 | AP-STEEL TPS | 3,9x32 | 0,7-2,4 | PH2 | 200 | 3200 |
| 39601B42013S0 | AP-STEEL TPS | 4,2x13 | 1,75-3 | PH2 | 500 | 8000 |
| 39601B42016S0 | AP-STEEL TPS | 4,2x16 | 1,75-3 | PH2 | 500 | 8000 |
| 39601B42019S0 | AP-STEEL TPS | 4,2x19 | 1,75-3 | PH2 | 500 | 8000 |
| 39601B42022S0 | AP-STEEL TPS | 4,2x22 | 1,75-3 | PH2 | 500 | 8000 |
| 39601B42025S0 | AP-STEEL TPS | 4,2x25 | 1,75-3 | PH2 | 500 | 8000 |
| 39601B42032S0 | AP-STEEL TPS | 4,2x32 | 1,75-3 | PH2 | 500 | 6000 |
| 39601B48016S0 | AP-STEEL TPS | 4,8x16 | 1,75-4,4 | PH2 | 500 | 8000 |
| 39601B48019S0 | AP-STEEL TPS | 4,8x19 | 1,75-4,4 | PH2 | 500 | 6000 |
| 39601B48025S0 | AP-STEEL TPS | 4,8x25 | 1,75-4,4 | PH2 | 500 | 4000 |
| 39601B48032S0 | AP-STEEL TPS | 4,8x32 | 1,75-4,4 | PH2 | 200 | 3200 |
| 39601B48038S0 | AP-STEEL TPS | 4,8x38 | 1,75-4,4 | PH2 | 200 | 2400 |
| 39601B48045S0 | AP-STEEL TPS | 4,8x45 | 1,75-4,4 | PH2 | 200 | 2400 |
| 39601B48050S0 | AP-STEEL TPS | 4,8x50 | 1,75-4,4 | PH2 | 200 | 2400 |
| 39601B48060S0 | AP-STEEL TPS | 4,8x60* | 1,75-4,4 | PH2 | 100 | 1200 |
| 39601B48070S0 | AP-STEEL TPS | 4,8x70/60* | 1,75-4,4 | PH2 | 100 | 1200 |
| 39601B48080S0 | AP-STEEL TPS | 4,8x80/60* | 1,75-4,4 | PH2 | 100 | 1200 |
| 39601B55038S0 | AP-STEEL TPS | 5,5x38 | 1,75-5,25 | PH3 | 200 | 2400 |
| 39601B55045S0 | AP-STEEL TPS | 5,5x45 | 1,75-5,25 | PH3 | 200 | 2400 |
| 39601B55050S0 | AP-STEEL TPS | 5,5x50 | 1,75-5,25 | PH3 | 200 | 1600 |
| 39601B55080S0 | AP-STEEL TPS | 5,5x80/60* | 1,75-5,25 | PH3 | 100 | 800 |
* Dimensione non a norma
Ogni conf. contiene un inserto
